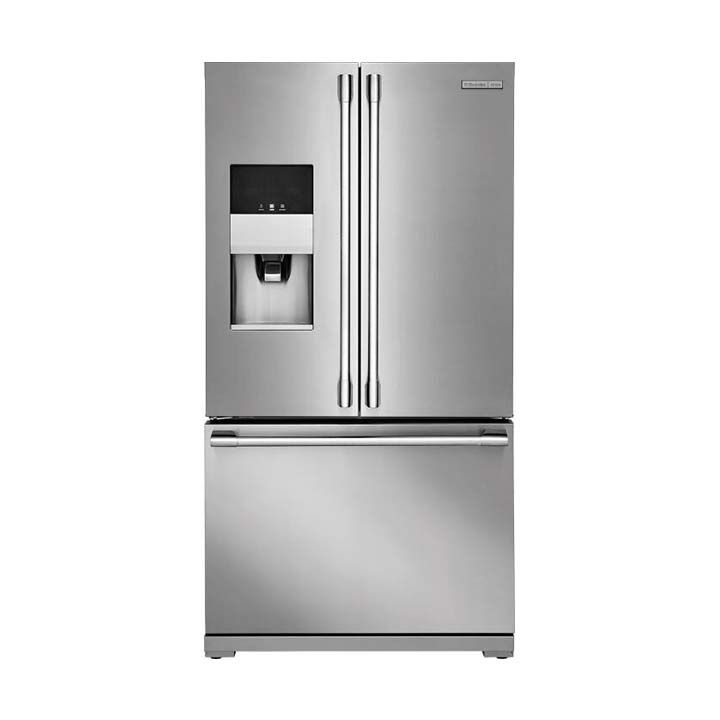

French Door Refrigerator
DOCUMENTATION:
FEATURES
36 Inch Counter Depth French Door Refrigerator with Wave-Touch® Controls
Bring home the modern and sleek look of this French Door refrigerator. Equipped with Wave-Touch® controls, the control panel will light up with a single touch and then fade away after selecting an option, allowing the display to look uncluttered. Keeping your produce fresh is easy with this product. These drawers smoothly glide out and preserve your fruit and vegetables with adjustable humidity control and minimal temperature variation. With the Custom Temp Drawer™ you can store all kinds of different foods and choose from either nine preset temperature selections or three customizable ones. Some of the preset selections include White/Sparkling Wine, Fish/Shellfish and Cheese. Aside from maintaining food freshness, this refrigerator is also designed for customized organization. From adjustable, Lift-Off shelves in the refrigerator to a Tri-Level freezer organization system, you can configure your unit's space to suit your needs.- Gallon Door Bin
- Wine Rack
- 21.5 cu. ft. Capacity
- "My Favorite" Settings
- Theatre Lighting
- Smooth-Glide® Freezer Drawers
SPECIFICATIONS
Capacities
- Freezer (Cu. Ft.): 6.81
- Freezer Shelf Area (Sq. Ft.): 5.67
- Fresh Food Capacity (Cu Ft): 14.66
- Fresh Food Shelf Area (Sq Ft): 18.75
- Total Capacity - Cu. Ft.: 21.5
- Total Shelf Area (Sq. Ft.): 19.93
Certifications & Approvals- CSA Certified: Yes
- ENERGY STAR® Certified: No
- Sabbath Mode: Yes
Fresh Food
- Air Filter Location: Dairy
- Air Filter: Dairy Mounted Air Filter
- Door Ajar Alarm: Yes
- Temperature Alert: Yes
- Power Failure Alert: Yes
- Crispers: 2 Smooth-Glide®
- Dairy Compartment: Clear Locking
- Half-Gallon Door Bins: 1 Clear (Adjustable)
- Tilt-Out Door Bins: 2 Clear (1 per door)
- Meat/Deli Drawer: Perfect Temp Drawer
- Drawer Trims: Yes
- Drawer Trim Color: White & Silver
- Energy Saver Plus: Yes
- Humidity Controls: 2
- Lighting Levels: Dual-Level
- Lighting Design: Theatre Ramp-Up LED
- Cantilever Shelves: Yes
- Custom-Design Shelves: 3 Half-Width 1 Quarter-Width Flat Lift-Off Spill Coated
- Water Filter Location: Bottom/Left Fresh Food Section
- Water Filter: PureAdvantage
Controls- Control Location: Dispenser
- Control Type: Wave-Touch®
- Air Filter Indicator (ref): Yes
- Supplemental Freeze (ref): Fast Freeze
- System On/Off Control (ref): Yes
- Water Filter Change Indicator Light: Yes
General Specifications
- Condenser Type: Dynamic
- Water Inlet Location: Left Rear Bottom
- Sound Package: Luxury-Quiet
Weight and Dimensions- Shipping Weight (lbs): 341
Freezer Specifications- Lower Adjustable Basket Dividers: Yes
- Middle Adjustable Basket: Yes
- Upper Adjustable Basket: Yes
- Lower Basket Construction: Wire grey powder-coated
- Middle Basket Construction: Wire grey powder-coated
- Upper Basket Construction: Wire grey powder-coated
- Lower Basket Design: Smooth-Glide® Full-Width
- Middle Basket Design: Full-Width Smooth-Glide®
- Upper Basket Design: Full-Width Smooth-Glide®
Freezer Specifications
- Ice Maker Bucket: No
- Ice Maker Location: Fresh Food Section
Ice Maker
- Ice Maker: No
- Ice Maker On/Off: Yes
- Ice Maker Type: Fresh Food Ice Maker
Dimensions: Exterior- Cabinet Depth: 23-5/8"
- Depth (w/ 90° Door Open): 42-9/16"
- Cabinet Depth (w/ Door): 26-7/8"
- Cabinet Depth (w/Handle): 29-1/2"
- Height: 70"
- Cabinet Height: 68-1/4"
- Cabinet Height (w/ Covers): 69-7/8"
- Width: 35-5/8"
- Case Width: 35-5/8"
Exterior
- Cabinet Color: Grey
- Door Finish: Stainless Steel
- Door Gasket: White
- Door Hinge Covers: Hidden
- Toe Grille: Stainless Steel
Exterior Specifications
- Door Closers: Yes
- Door Design: Tall
- Door and Handle Design: Designer
- Door Stops: Yes
- Door Style: Square Corner
- Name Badge: Electrolux ICON
- Front Rollers: Yes
- Rear Rollers: Yes
Electrical Specifications- Amps @ 120 Volts: 8.5
- Min Circuit Required: 15A
- Connected Load @ 120V: 1.02
- Connection Location: Right Rear Bottom
- Voltage Rating: 120V 60Hz
