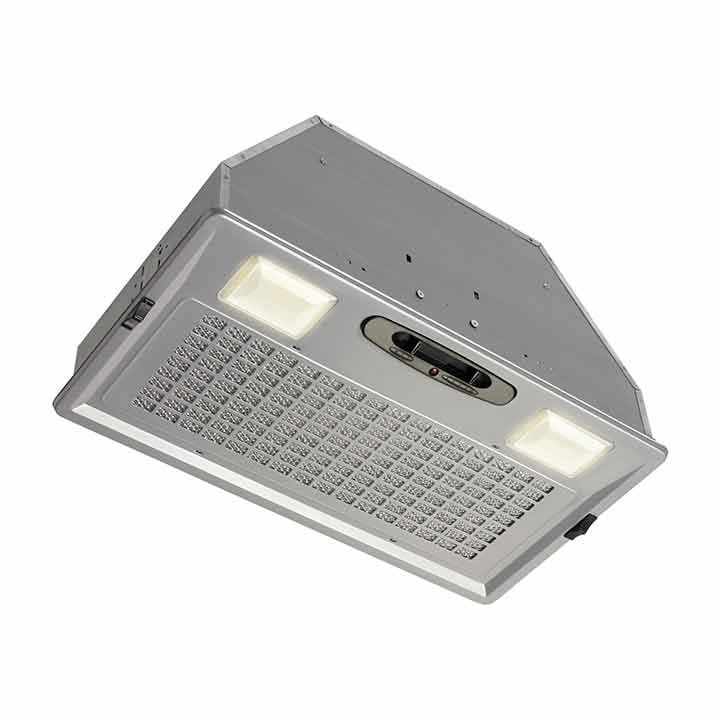

    20-1/2 in. Custom Range Hood Power Pack



    High-performance ventilation solutions. These integrated units provide the ventilation and lighting you need for your custom application. Broan "T" and "B" liners provide an elegant way to finish a traditional wood hood and protect cabinetry. Smooth surfaces clean easily and quick-release filters can go in the dishwasher.



    • Durable, powder coated silver finish and a fully enclosed bottom ensure this hood is easy to clean and will not discolor
    • The enclosed lighting area is home to dual incandescent 40-watt candelabra bulbs (sold separately)
    • One-piece, washable aluminum mesh filter means you can maintain optimum grease capture and keep the kitchen fresh
    • Optional non-ducted filter kit model 356NDK for indoor exhaust recirculation (includes duct accessories & charcoal filter), sold separately. Replacement charcoal filter is B08999040.
    • Optional 30" and 36" liners (LB30, LB36, LT30 & LT36) allow you to create a custom enclosure and protect your cabinetry (sold separately)
    • Can work in an ADA Compliant situation when wired to operate from a dedicated, standard 2-rocker or 3-rocker wall switch to turn the hood on or off.
    • Three-speed slide controls provide 390 CFM of exhaust at 6.0 sones
    • The choice of 6" round duct (includes damper and adapter) or non-ducted discharge allow you to make the right installation decision for your home
    • Heat Sentry® detects excessive heat and adjusts blower to High speed automatically
  • SPECIFICATIONS

    • Filter Type: Aluminum
    • Heat Sentry™: No
    • HVI Certified: Yes
    • Lighting Type: Incandescent
    • UL Listed: Yes
    • ADA Compliance: No
    • Damper Included: Yes
    • ENERGY STAR® Certified: No
    • Light Bulb Wattage: 40
    • Light Bulbs Included: No
    • Light Levels: 1
    • Nightlight Or Nightlight Setting: No
    • Ductless Recirculation Capable: Yes
    • Ductless Filter Or Kit Included: No
    • Remote Operation Capable: No
    • Speed Levels: 3
    • Switch Control Type: Slide
    • Rated Voltage: 120
    • Boost Mode: No
    • Color Finish: Silver
    • Rated Amps: 2.9
    • Product Depth: 11.25
    • Product Height: 9.625
    • Product Width: 20-1/2"
    • Built-In Timer: No
    • CFM: 390
    • Diameter: 6" Round
    • Vent Type: Ducted & Ductless
    • Duct Direction: Vertical
    • Bulb (Recommended Type): E12
    • Manufacturer Warranty: 1 Year
    • Wattage: 348
